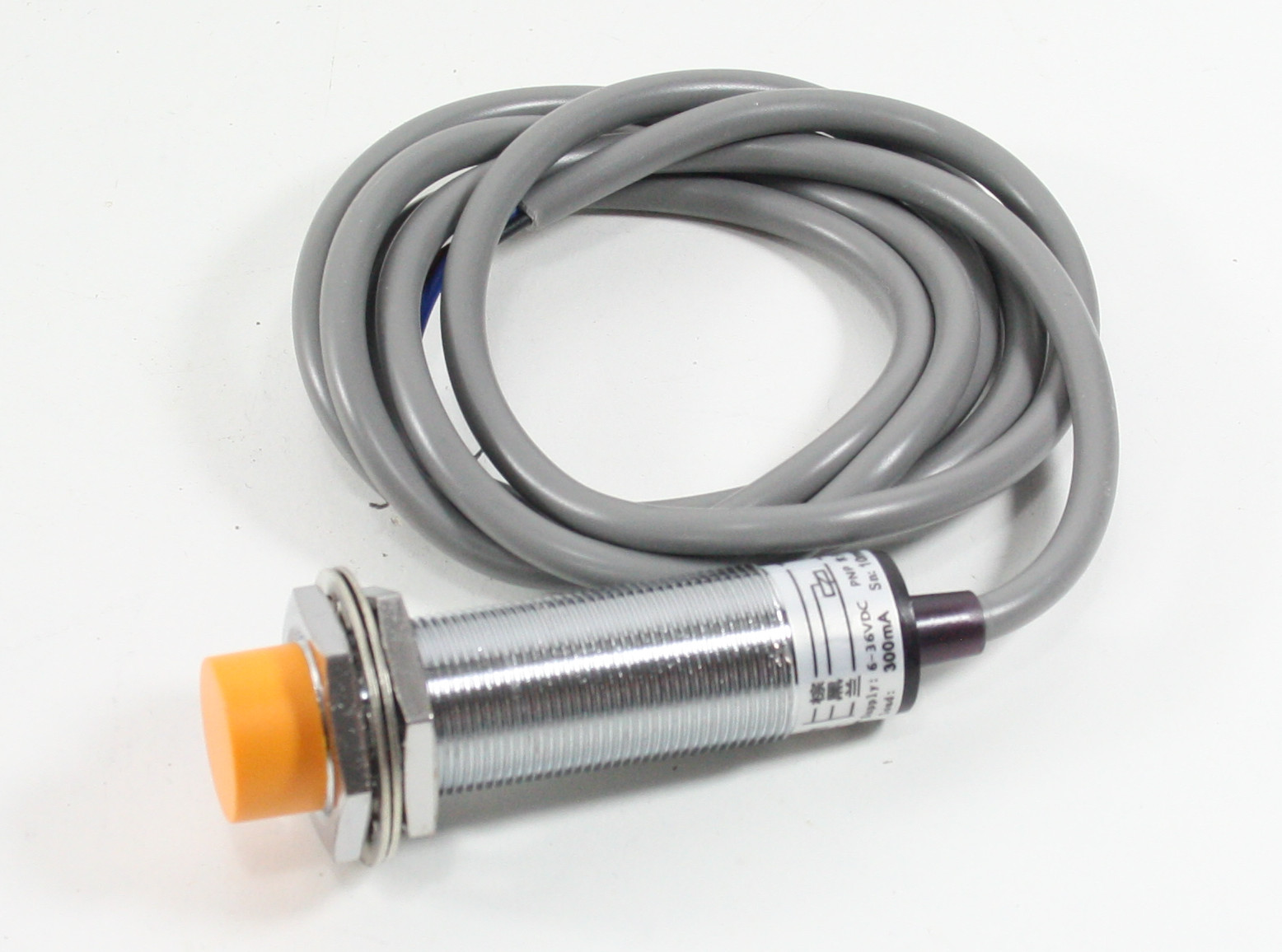

Induktive sensorer:
Berørings og slidfrit arbejdsprincip, høje koblings-frekvenser og koblingsnøjagtighed. Induktive sensorer er ikke følsomme over for vibration, støv og fugtighed. Induktive sensorer detekterer berøringsfrit alle metaller.
| Generel information: | ||
|---|---|---|
| Model number | LJC18A3-B-Z/BY | |
| External dimensions | M18x65 | |
| Installation type | Non-shielded | |
| Detection distance | 10mm | |
| Skifterelementfunktion | PNP NO | |
| Supply voltage | 6-36Vdc; 90-250Vac, 36Vac, 380Vac, 50/60Hz | |
| Output current | DC type: 300mA max; AC Type: 400mA | |
| Standard detected object | Mild steel (18x18x1mm) | |
| Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) | |
| Response frequency | 500Hz | |
| Matched mounting bracket | M18 90° bending mounting bracket, M18 straight mounting bracket | |
| Output indication | Red LED | |
| Short-circuit protection | No | |
| Reverse connection protection | Yes | |
| Insulation resistance | 50MΩ min (between charging part and housing) | |
| Dielectric strength | 1000Vac, 1min (between charging part and housing) | |
| IP Rating | IP65 | |
| Operating temperature | -25 to 70 °C (13 to 158 °F) | |
| Cable length | 1.2m, PVC cable | |
| Material | Case: Brass-nickel plated; Sensing surface: ABS | |
